Vehicle Model

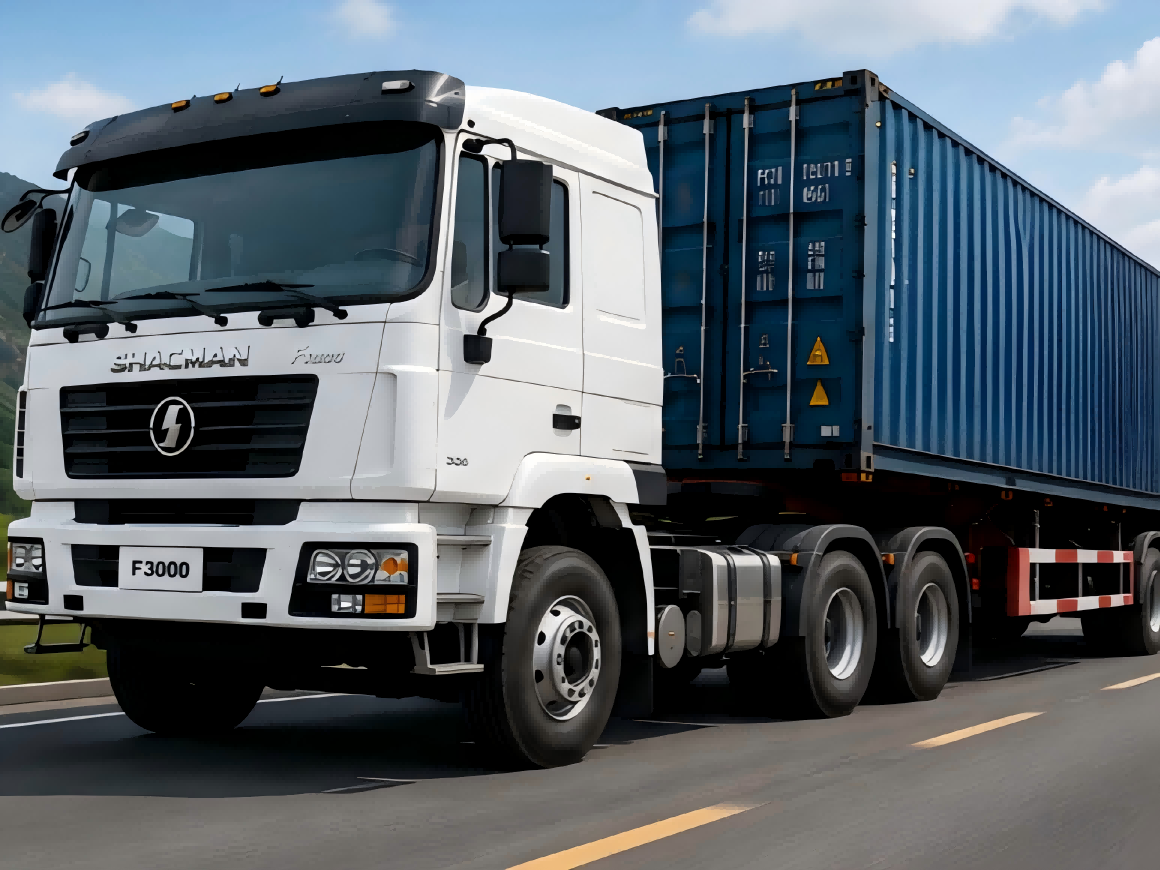

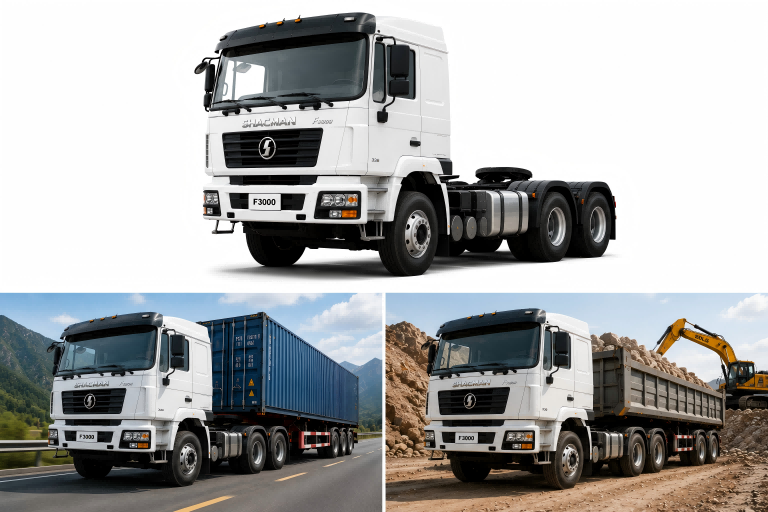

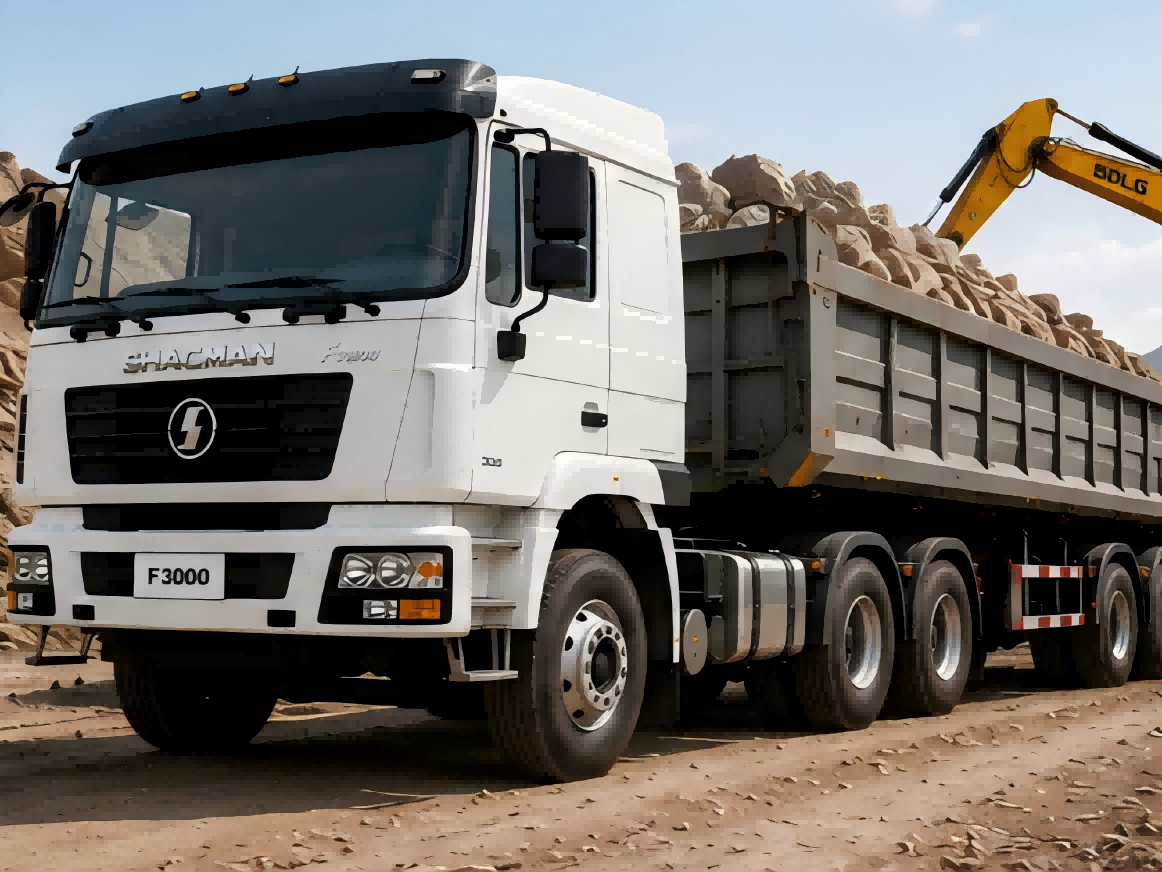

SHACMAN F3000 6×4 Trailer Truck
Vehicle Type
Trailer Truck / Tractor Head
Cabin
F3000 High Roof Cabin With Sleeper
Driving Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
Air Conditioner, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP12.430E201
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSD200T
Gearbox
12 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Rear Axle
13T MAN Double Reduction Axle ×2
Axle Ratio
4.769 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Suspension
Heavy-duty Multi-leaf Spring
Fuel Tank Capacity
400 L / 600 L
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
6800 × 2550 × 3850 mm
Traction Capacity
50–70 Tons
Minimum Turning Radius
9.5 m
Application
Container Transport / Logistics / Long-distance Freight
Optional Configuration
Customized Configuration Supported
