Vehicle Model

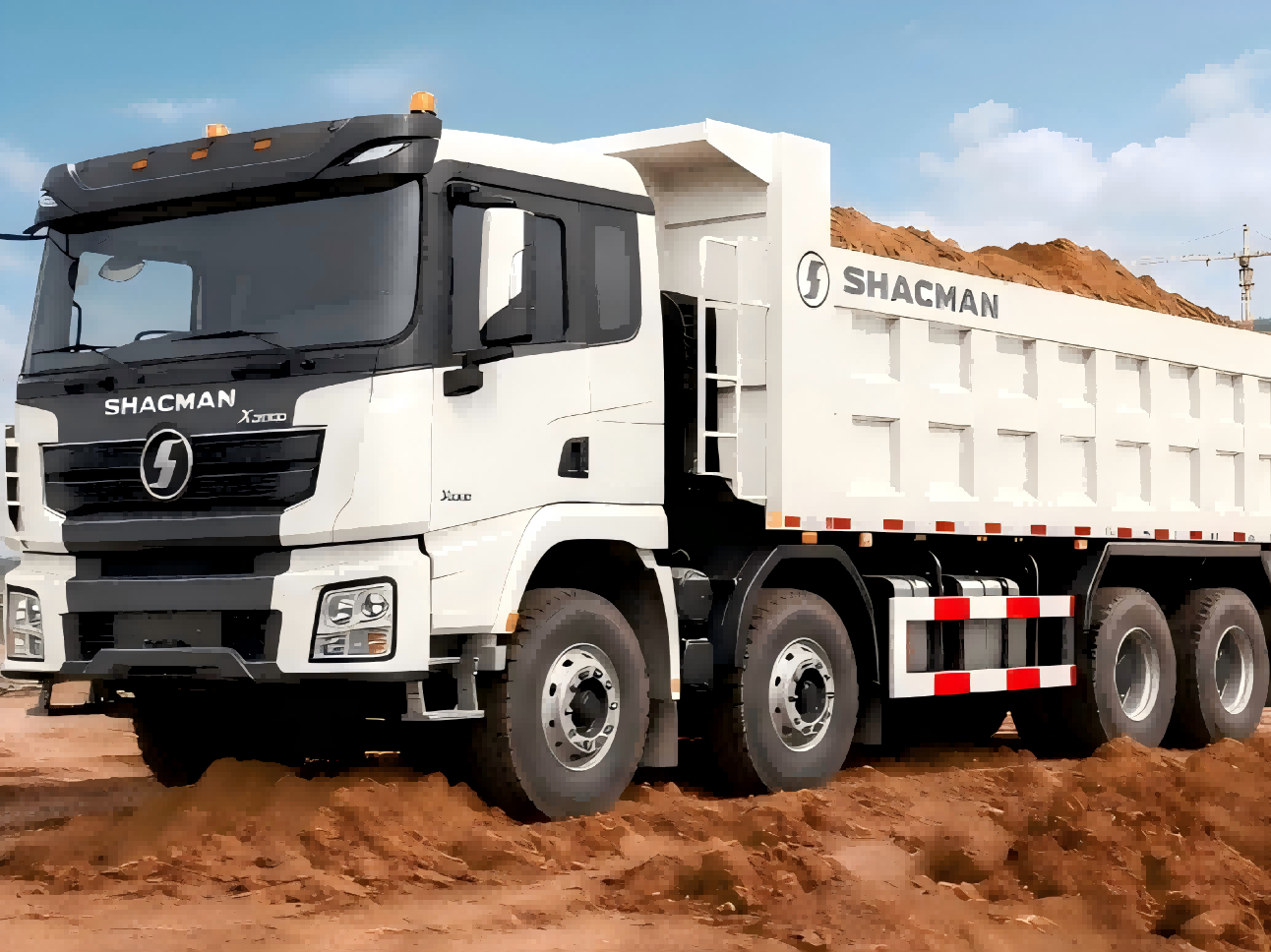

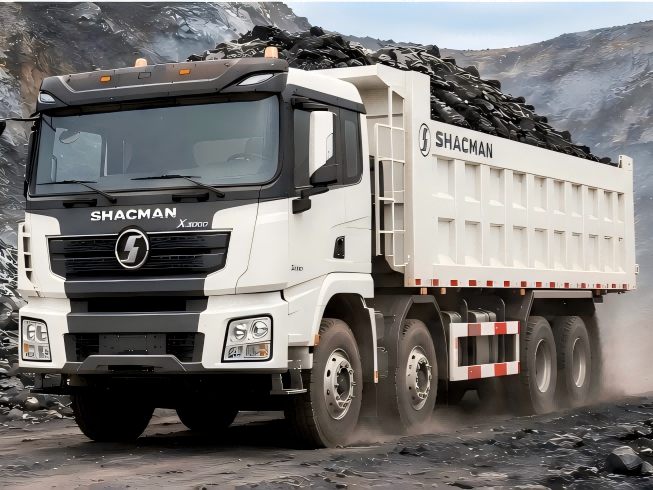

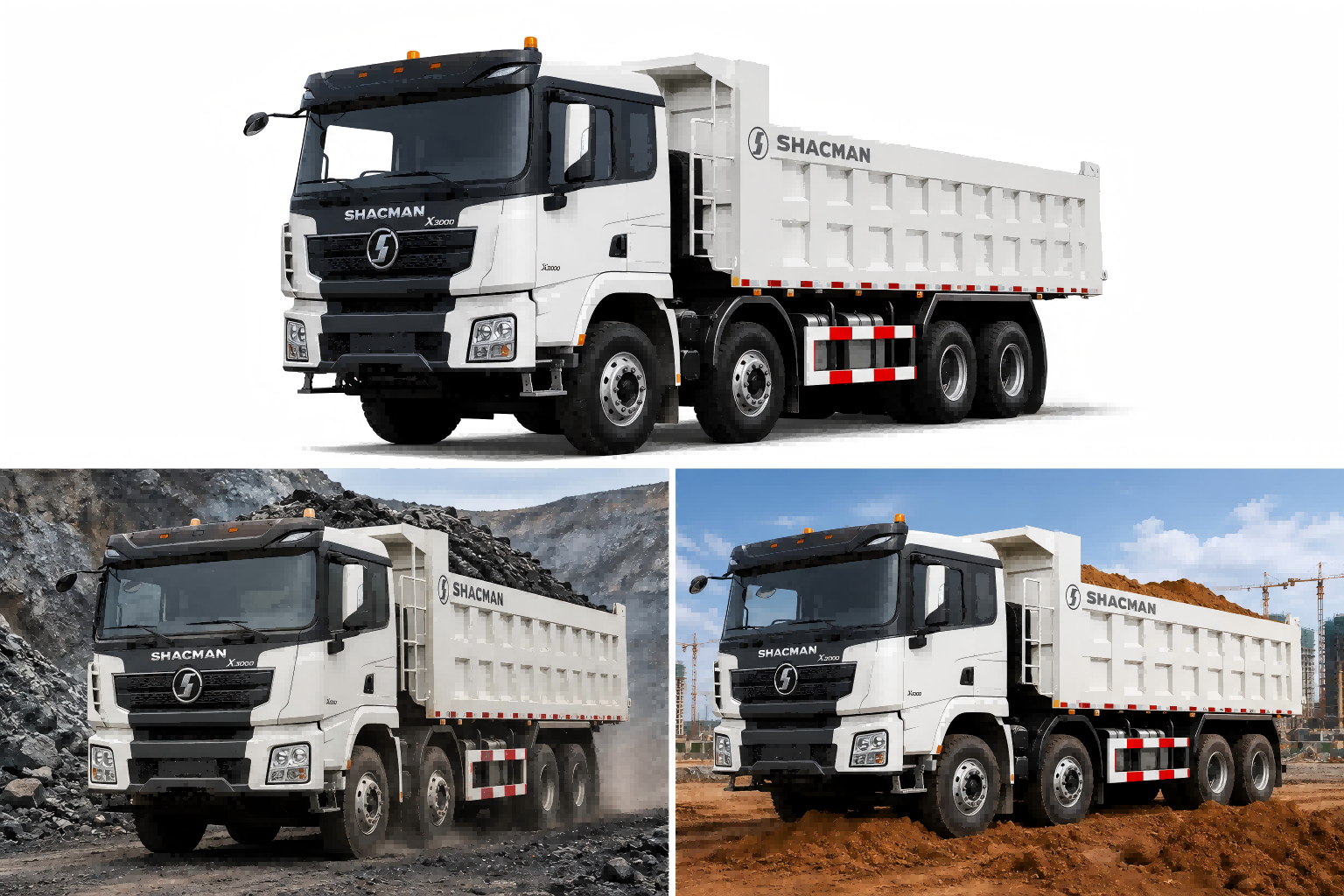

SHACMAN X3000 8×4 Dump Truck
Cabin
X3000 High Roof Cabin With Sleeper
Cabin Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
A/C, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP13.550E501
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSDX240TA
Gearbox
12 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Front Axle
9.5T MAN Axle ×2
Rear Axle
16T MAN Double Reduction Axle ×2
Axle Ratio
5.262 / 5.92 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Auxiliary Brake
Engine Exhaust Brake
Suspension
Heavy-duty Multi-leaf Spring
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
12 + 1 Spare Tire
Wheelbase
1800 + 3575 + 1400 mm
Overall Dimension
10500 × 2550 × 3450 mm
Cargo Box Thickness
Bottom 10 mm / Side 8 mm
Cargo Box Material
High-strength Wear-resistant Steel
Hydraulic System
HYVA Front Hydraulic Lift
Dumping Direction
Rear Dump
Payload Capacity
50–70 Tons
Minimum Turning Radius
12 m
Application
Mining / Quarry / Construction / Heavy-duty Transport
Optional Configuration
Customized Configuration Supported
