Vehicle Model

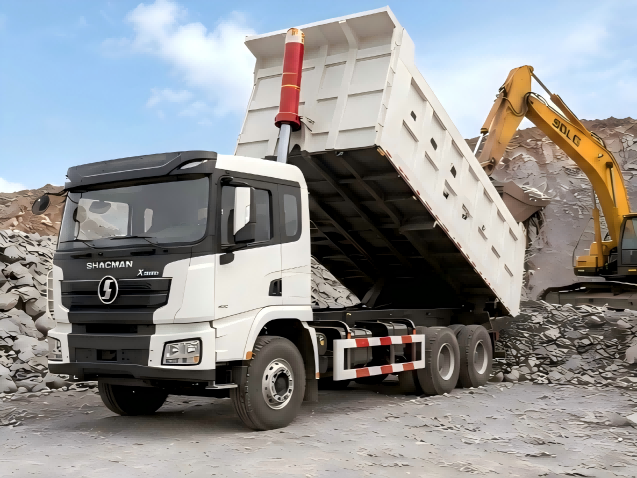

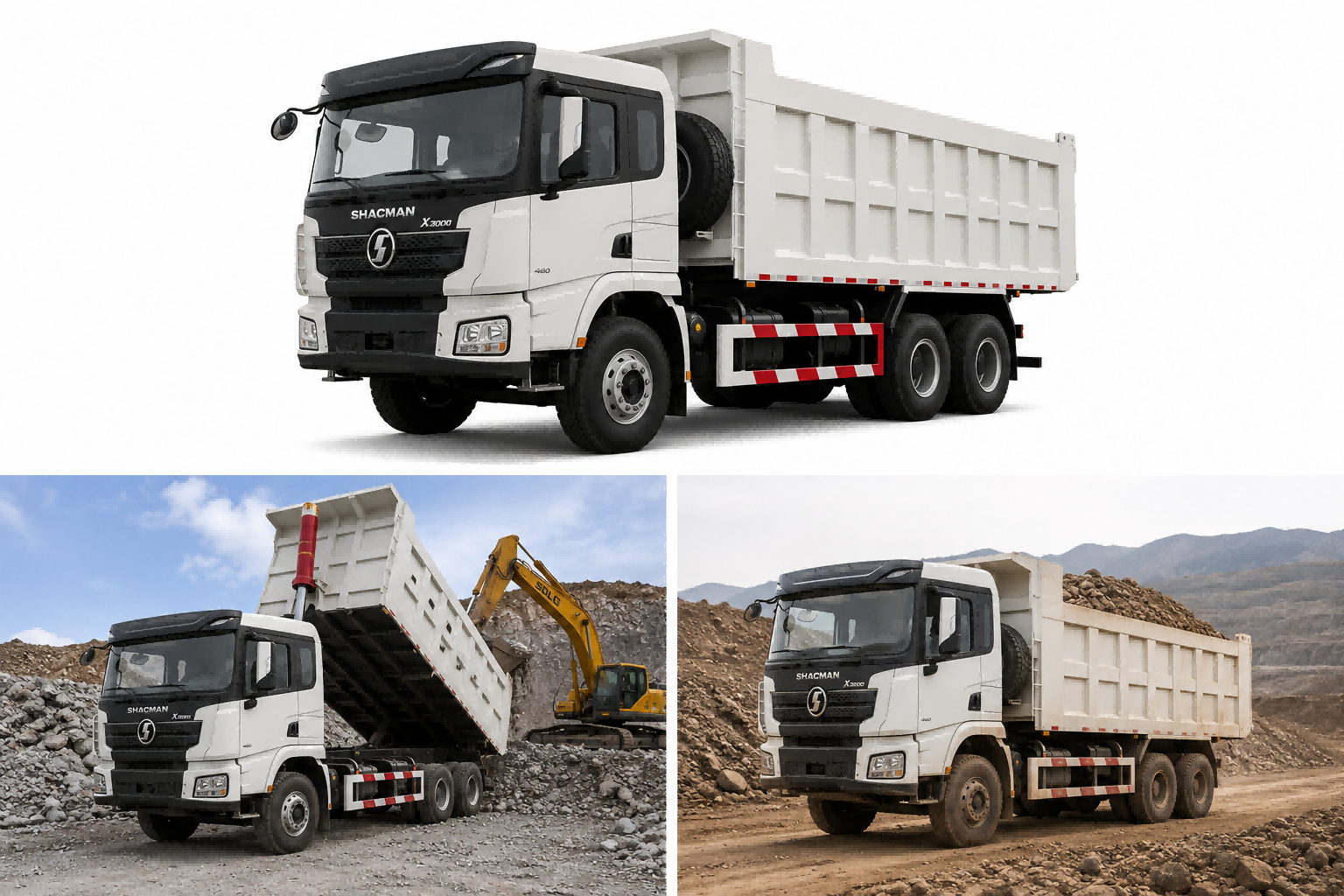

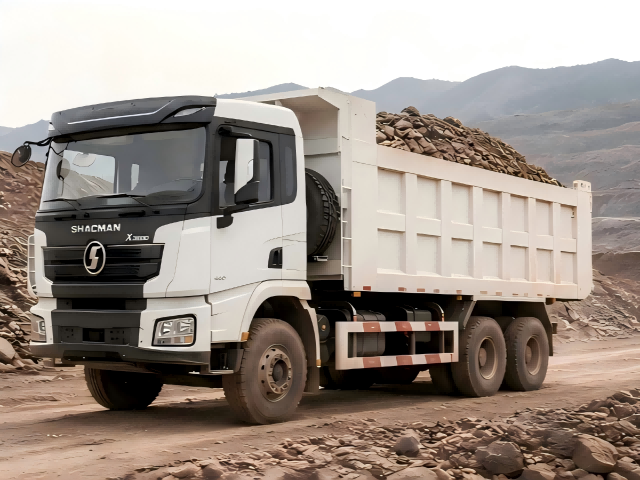

SHACMAN X3000 6×4 Dump Truck
Cabin
X3000 High Roof Cabin With Sleeper
Cabin Equipment
A/C, Air Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP12.430E201
Emission Standard
Euro II / Euro III / Euro V
Transmission Model
12JSD200T
Gearbox
12 Forward & 2 Reverse
Rear Axle
16T MAN Double Reduction Axle
Steering System
ZF Hydraulic Steering
Brake System
Air Brake + Exhaust Brake
Suspension
Heavy-duty Leaf Spring
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
10 + 1 Spare Tire
Overall Dimension
8500 × 2550 × 3450 mm
Cargo Box Size
5600 × 2300 × 1500 mm
Cargo Box Thickness
Bottom 8 mm / Side 6 mm
Cargo Box Material
High-strength Steel
Hydraulic System
HYVA Front Lift
Loading Capacity
30–40 Tons
Application
Mining / Construction / Heavy Transport
Optional Configuration
Customized Configuration Supported
